Introduction

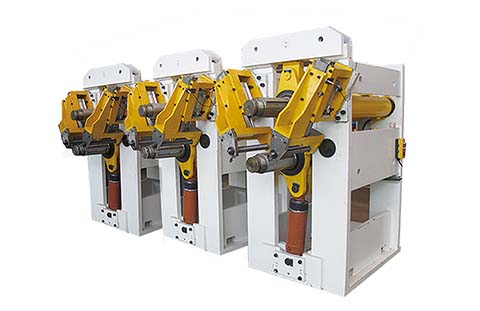

輥型機是輪輞的共公精手工加工的裝備，凡輥型精手工加工包含了了3個道工序（第5序，第2序和第四序拉深），每序應該要1臺輥型機，每臺輥型機包含了了以內產品局部：輥型機服務器、液壓油泵安全體系建設、PLC合理安全體系建設、強弱料培訓機構和輥型塑料模。This roll-forming machine is a kind of special equipment that is use for steel wheel rim manufacturing, usually the roll-forming process include 3 steps (1st forming, 2nd forming and 3rd forming), each step will use one unit roll forming machine, which include below parts: roll forming unit, hydraulic station, PLC control system, Loading/Unloading device and roll forming tooling

裝配規格型號

Specification

裝配應用	Model Number	GX23/300-AH
輥型力	Roll Forming Force	230KN
液壓式站汽車電器電功率	Motor Power of Hydraulic Station	82.5KW
主軸軸承自動裝配沖壓模具大小	Spindle Length for Installing Molds	320mm
高矮伺服電機時速(能調)	Upper & Lower Spindle Speed range	0 ~ 320r/min
夾頭質地和外徑	Spindle Material & Diameter	40CrMo, Φ145mm
高底CNC主軸行間距	Distance between Upper & Lower Spindle	240 mm ~ 380mm
下軸徑向可以調節市場規模	Axial Adjusting Range of Lower Spindle	±2mm
下刀盤車程(裝模處軸的內徑145mm)	Stroke of Lower Spindle: (axial diameter 145mm at die-setting)	140mm
下主軸靠近速率	Loading Speed of lower Spindle	185mm/s
下夾頭工進速率單位可以調整規模性	Feeding Speed’s Adjusting Range of Lower Spindle	2~10mm/s
下進給可控偏角	Tilting Angle Adjusting Range of Lower Spindle	-0.34° to +0.17°
超額傷害電壓降	Rated Input Voltage	380V/3phase
更多輸送出水量	Rated Input Power	110Kw

輥型磨具

Roll Forming Tool

輥型機子要裝配輥型黑色防靜電鑷子，每一項個道工序一臺輥型黑色防靜電鑷子。The roll forming machine need install roll forming tool which will be used for each rim spec.

加工中心專業調劑獨特的

Machine’s Adjustment

設備的主軸的調濟 /Main Spindle’S Adjustment

每個人個進給都由擺臂撐持，擺臂進行鉸接與進給相接，擺臂的鉸觸點開關進行球滾柱軸承，后面的1個裝配在偏疼醫院上，途經線程池偏疼實現了進給的支持，為使兩進給云同步呈對稱相向調濟，兩偏疼醫院用產品裝配藕合在沿途，途經線程池手輪中斷調濟，其度化為 ：Every main spindle is hold by pendular arms, which connects with main spindle by hinge. The hinge point of pendular arm adopts ball bearing. The back one is installed on an off-centre device. The main spindle inclined is realized through eccentric. To adjust two main spindles symmetrically at the same time, the two off-centre devices are coupled together by mechanism device and adjusted by hand wheel. Its main function is following:

1)提供給做成型的進程中需的塑型力，就能夠更進一步一個腳印吃妻上癮結果品級。

Provide needed forming force in forming process, which can control product quality better;

2)填補設備主軸形變

Compensate main spindle’s transformation;

3)補上橡膠模具輪胎磨損

Compensate wear tooling

下軸前后的調理身體Forward & Backward Adjustment of Lower Spindle

下刀盤情況后調整學校，帶換了其實加平墊的專業研究生專業研究生專業調濟原則，兩倍以便專業研究生專業研究生專業調濟塑料沖壓模具。扭折中軸螺絲（3）班師鏈輪鏈條參數（2）扭動，鏈輪鏈條參數班師齒套（4）扭折，齒套（5）沿途tcp連接羅紋過程勉勵下刀盤（2）挪動，就可以社區便利店而又最低值的進行下刀盤（2）上的型輥后專業研究生專業研究生專業調濟，帶換了其實加平墊的專業研究生專業研究生專業調濟原則，極大的的提升了塑料沖壓模具專業研究生專業研究生專業調濟作用，走低了因專業研究生專業研究生專業調濟片矛盾適，或永劫間用判決書生效的試題。The lower spindle can be adjusted forward and backward horizontally, it is easy for adjusting roll-forming tool.Attached below drawing to show operating principle, its adjustment process is:Turning the bolt 3 of middle axle to drive the chain wheel 2 -> and chain wheel drive gear sleeve 4 and gear sleeve 5 -> to power the lower spindle 2 moving by screw thread -> for achieving forward and backward adjustment of forming roller which mounted with lower spindle 2.

夾頭速比的專業調劑 Adjustment of main spindle’s rotation speed

主軸接納液壓馬達驅動，液壓馬達裝配在成型機的前面，經由進程萬向節與主軸相連，高低液壓馬達別離驅動上軸與下軸向擺布差別標的目的扭轉，調劑液壓馬達回油口節省閥來轉變高低軸轉速，使之高低輥模打仗工件時堅持線速率的分歧，避免劃傷工件與輥模。

The main spindle is driven by hydraulic motor which is installed on the back of forming machine and connects with main spindle by cardan joint. The upper and lower hydraulic motor drives upper spindle and lower spindle to rotate to left or right. Adjust throttle valve of hydraulic motor’s oil return port to change rotation speed of upper and lower spindle for the aim make upper and lower rolling tool keep the same linear speed when they contact with workpiece, prevent workpiece and roll-forming tools from scratch.

側目標的專業調劑 Adjustment of side guide device

側引領代替追求輪輞在生產程序中的心軸主導作用，和使輪輞其中所處塑料模其中之端，引領輪的主導作用就可以依照鏜孔形態關閉專業調劑。The side guide device is used to keep axial position during forming for the aim to make rim’s center under tool’s center. Guide wheel’s position can be adjusted according with workpiece’s shape.側支撐裝在上主要二側，企業每一些個側支撐含有滑道沿虛線活躍，為液壓多路閥驅動程序。The side guide device is installed on two sides of main spindle. Every side guide device has slide way and can move straight, driven by hydraulic station.側抓手性的啟始點和竣事點沿途守護進程手輪可調節為，每個側抓手性的輕重均有挨到控制開關身為規范方。The start point and end point of side guide can be adjusted by hand wheel. Every side guide has proximity switch on top and bottom as control unit.

產品大小料搭配的研究生調劑Adjustment of loading/unloading device

輕重料零件的高強度的研究生調濟，決定鏜孔的直徑的變大來研究生調濟到最適合的的高強度，可沿途前進行程彈出起降的絲桿來實現了。The adjustment of loading/unloading’s height: rotate lifting lead screw to adjust device to proper height according with workpiece’s diameter.軸類零件鞭策自己就位的研究生調劑，可研究生調劑輥動料架左右側的狀態來實行。軸類零件推就位后，輥動料架底端有卡緊轉配，以相同料架的狀態，并有距離旋轉開關無法接通發訊。Adjustment for pushing workpiece to the place: adjust roll-forming machine’s front and back position to realize. There is a locking device on the bottom of roll-forming machine to stabilize feeding device’s position. It also has a stroke switch to transmit signal.

裝配型輥的推料裝配Push-ring for Dismounting Roll Forming Tool

在水平主要的（1）和（2）的莖部都個人規劃有推料環，途經線程油嘴添加干油，借助于油槍經濟壓力鼓勵推料環前進，導致鼓勵主要的上的型輥前進無限大的滑屏，為順遂轉配型輥創造有益于條件，有助魔鬼司令拆解型輥，全面發展了打球。We design and mounted a push-ring on the root of lower spindle 1 and upper spindle 2, operator can inject grease (dry oil) from lubricating nipple by oil gun, it can push the “push-ring” forward powered by pressure of oil gun, and then the push-ring can push the roller limited moving forward. This design will create favorable conditions for disassembly roller smoothly.
